Chinese Li-polymer Cell Manufacturer Supply BZ 103033 3.2V 700mAh LiFePO4 Battery for Electric Toothbrush

$2.20
In stock
SKU
BZ 103033 3.2V 700mAh LiFePO4

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

    Brand Name: BZ
    Model Number: 103033
    Type: LiFePO4 Battery
    Nominal Voltage: 3.2V
    Size: 10*30*35mm
    Nominal Capacity: 700mAh
    Product name: 103033 battery
    Warranty: 1 Year
    Weight: 10g
    Cycle life: 500 Times
    Application: Electric Toothbrush
    Certificate: RoHS/MSDS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C



Benzo Energy • UFine Technology' Lithium battery test laboratory

Benzo Lithium battery test laboratory

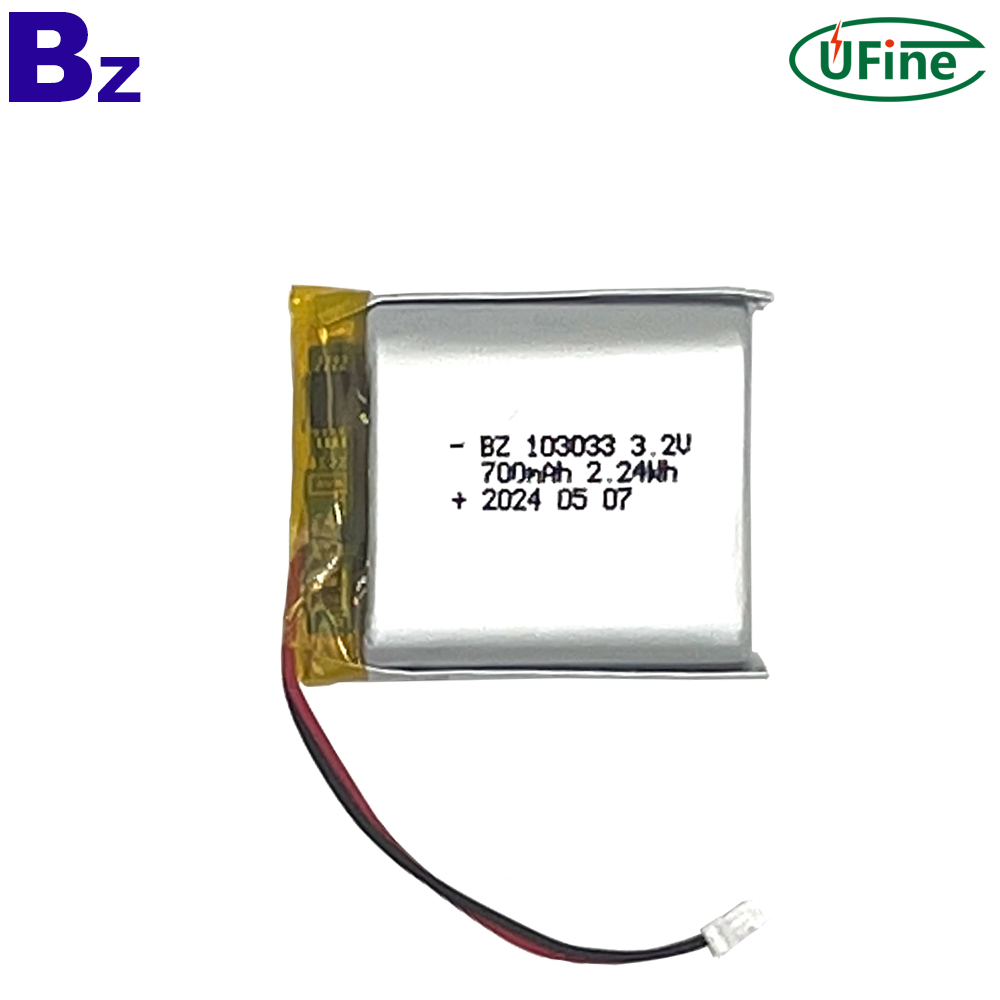

Manufacturer Supply BZ 103033 Battery

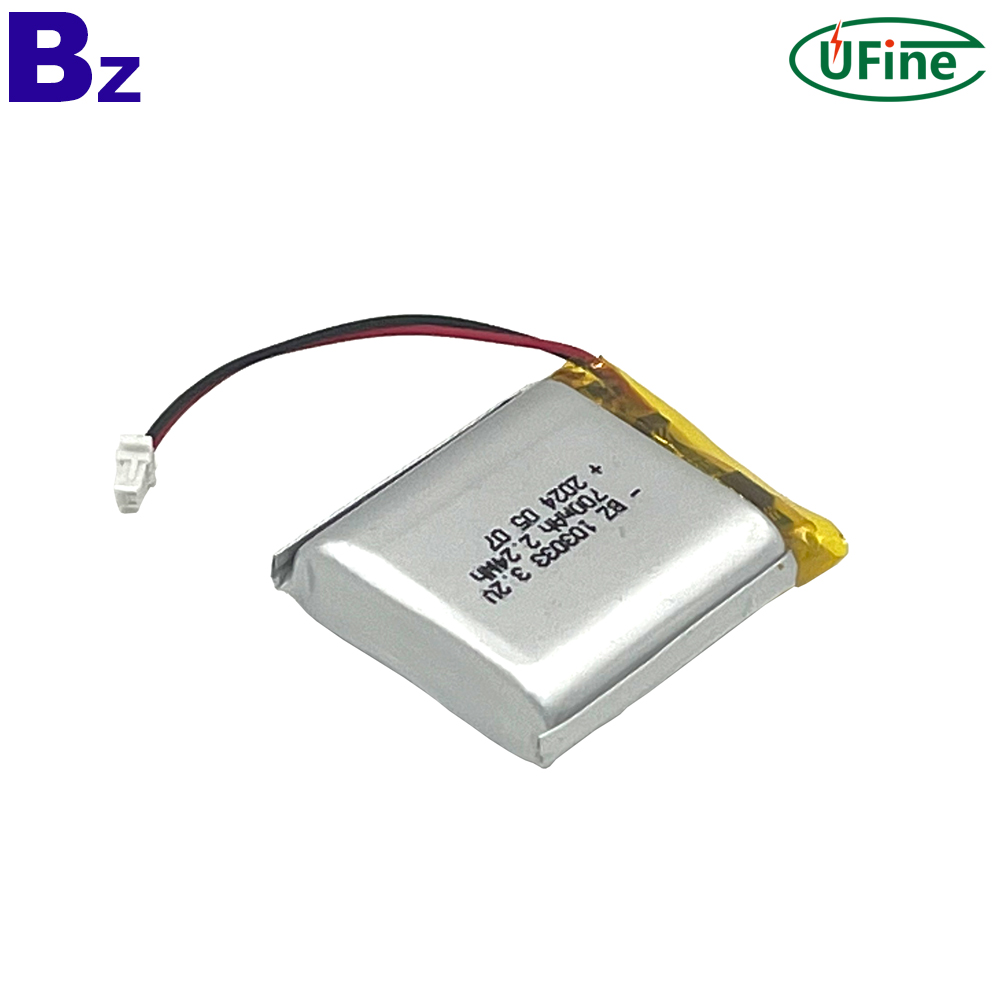

3.2V 700mAh LiFePO4 Battery

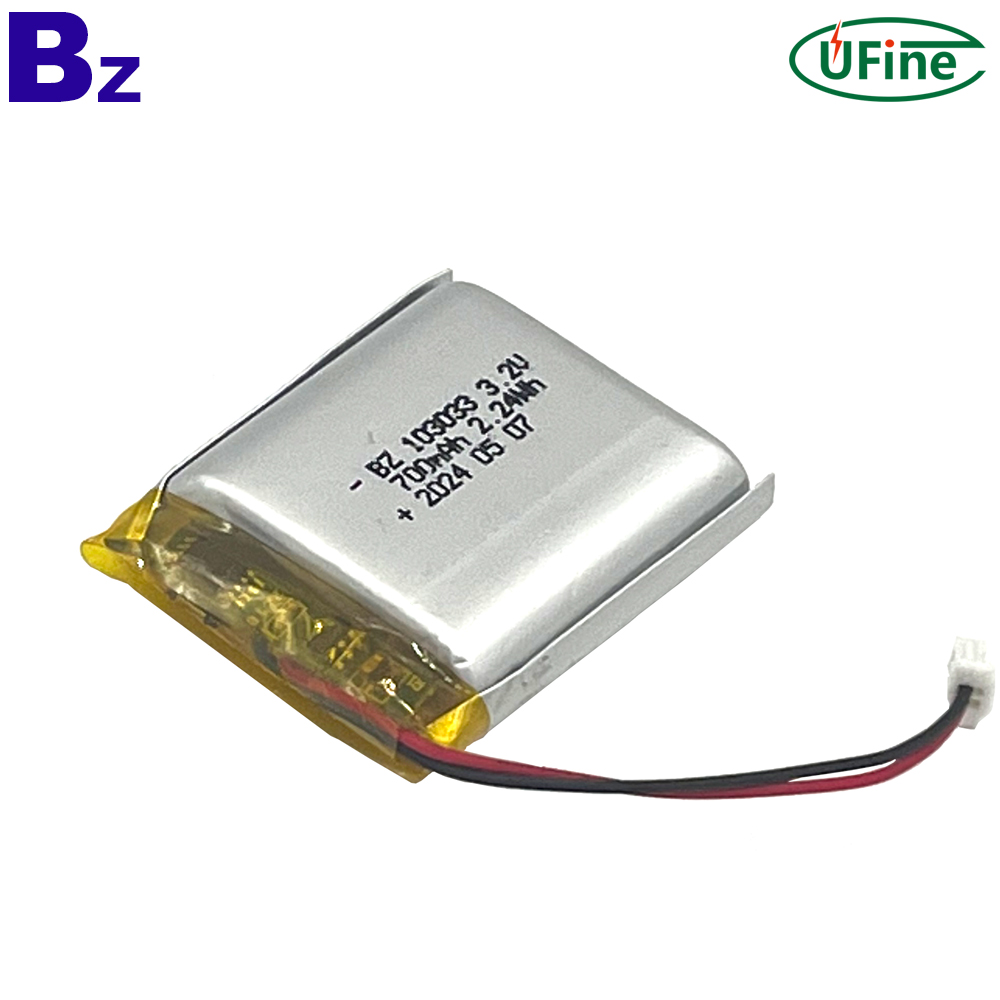

Li-polymer Cell for Electric Toothbrush

Product Parameters


No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

700mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

700mAh

2

Nominal Voltage

3.2V

Mean Operation Voltage

3

Voltage at end of

2.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

3.6±0.03V



5

Internal Impedance

≤175mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 3.6V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 2.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 3.6V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 2.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

                    High: max35mm                              Width: max30mm
Thickness: max10mm

Initial  Dimension
