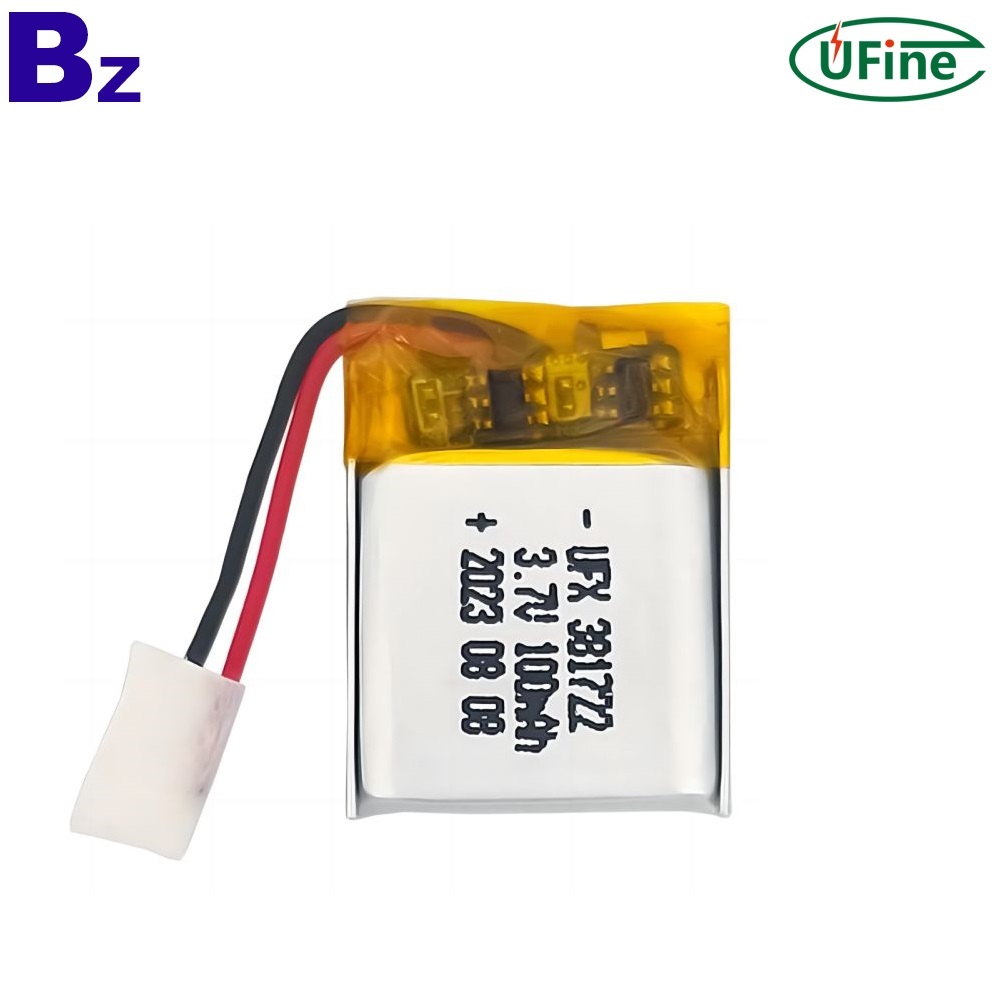

Lipo Cell Factory Professional Customized Remote Control Battery UFX 381722 3.7V 100mAh Lithium-ion Polymer Battery

$1.00
In stock
SKU
UFX 381722 3.7V 100mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

  •     Brand Name: BZ
        Model Number: 381722

        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size:3.8*17*24mm
        Nominal Capacity: 100
    mAh
        Product name: BZ 381722 Rechargeable Battery
        Warranty: 1 Year
        Weight: 2g
        Cycle life: 500 Times
        Application: Remote Control
        Certificate: RoHS/MSDS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C


Benzo Energy • UFine Technology' Lithium battery test laboratory

Benzo Lithium battery test laboratory

 전문가 맞춤형 3.7V 100mAh Lipo 배터리

원격 제어용 3.7V 100mAh 배터리

381722 3.7V 100mAh 리튬 이온 폴리머 배터리


Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

100mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

100mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤280mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max24mm

Width: max17mm
Thickness: max3.8mm

Initial  Dimension
