China Best Factory Customized For Miner's Lamp Battery UFX 103035 3.2V 600mAh LiFePO4 Battery

$2.30
In stock
SKU
UFX 103035

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: UFX
        Model Number: 103035
        Type: LiFePO4 Battery
        Nominal Voltage: 3.2V
        Size: 10*30*37mm
        Nominal Capacity: 600mAh
        Product name: UFX 103035 Battery
        Warranty: 1 Year
        Weight: 6.8g
        Cycle life: 1000 Times
        Application: Miner's Lamp
        Certificate: UN38.3/CE/MSDS/ROHS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

Benzo Energy • UFine Technology' Lithium battery test laboratory

Benzo Lithium battery test laboratory

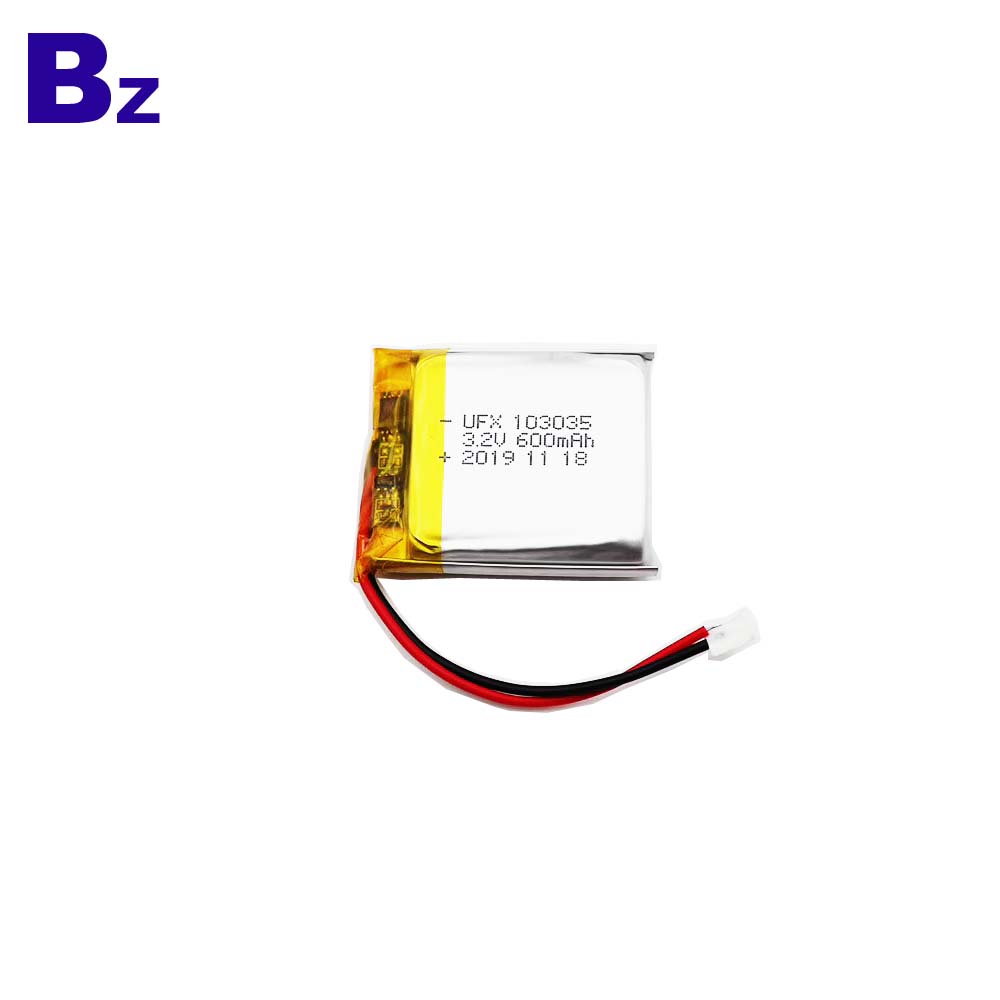

600mAh Battery For Miner's Light

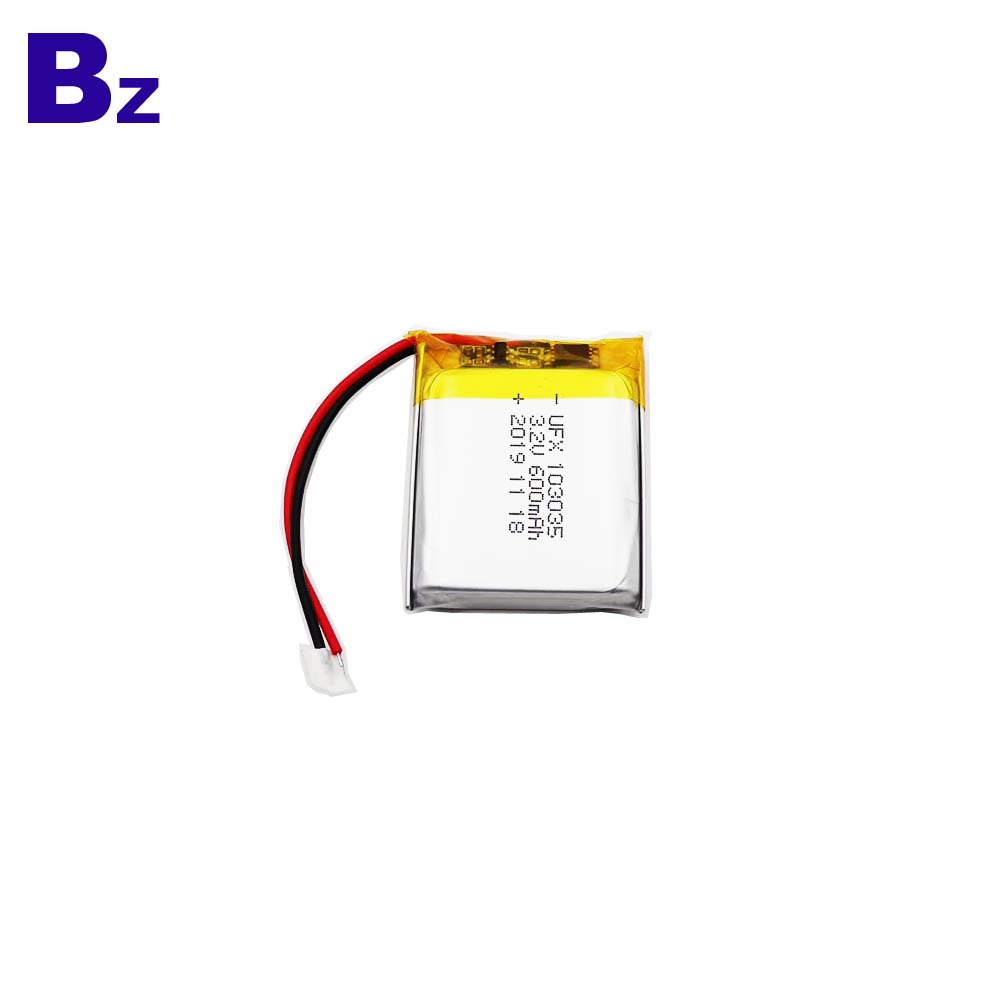

103035 3.2V 600mAh LiFePO4 Battery

China Factory Customized 600mAh LiFePO4 Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

620mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

600mAh

2

Nominal Voltage

3.2V

Mean Operation Voltage

3

Voltage at end of

2.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

3.6±0.03V



5

Internal Impedance

≤175mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 3.6V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 2.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 3.6V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 2.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

3C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max37mm

Width: max30mm
Thickness: max10mm

Initial  Dimension
