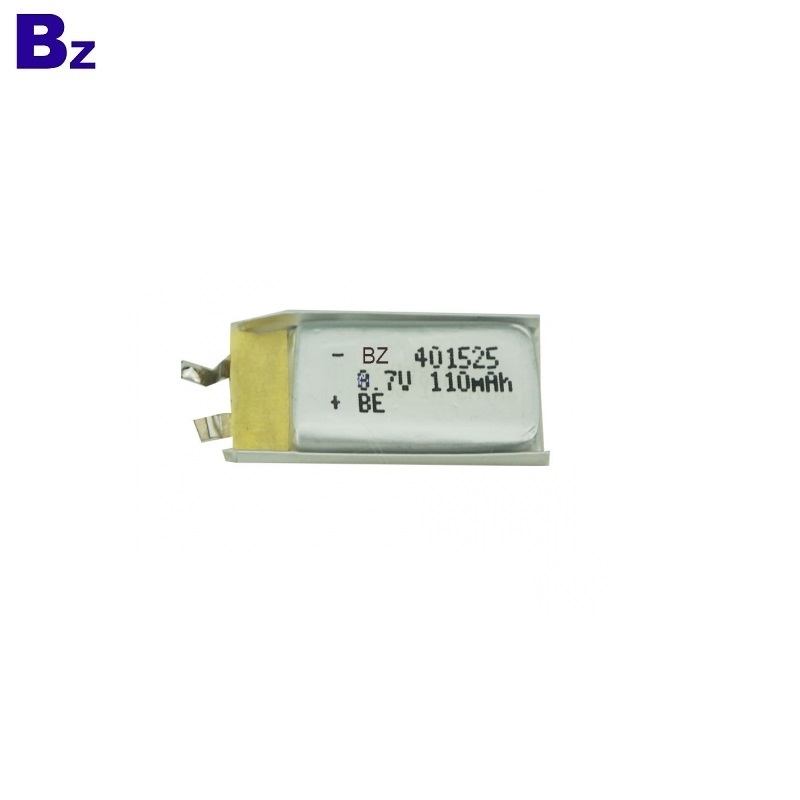

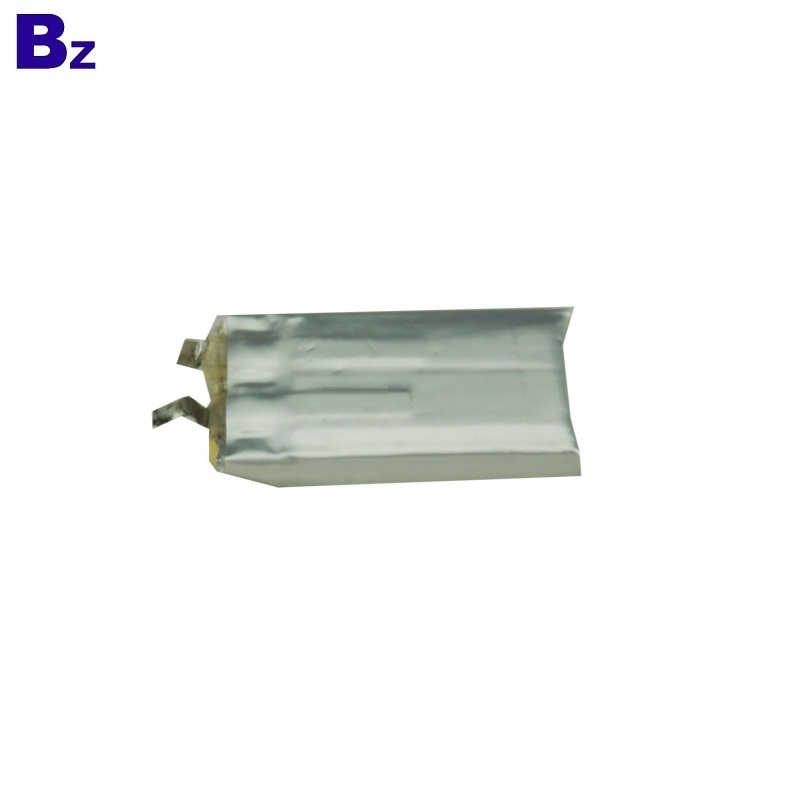

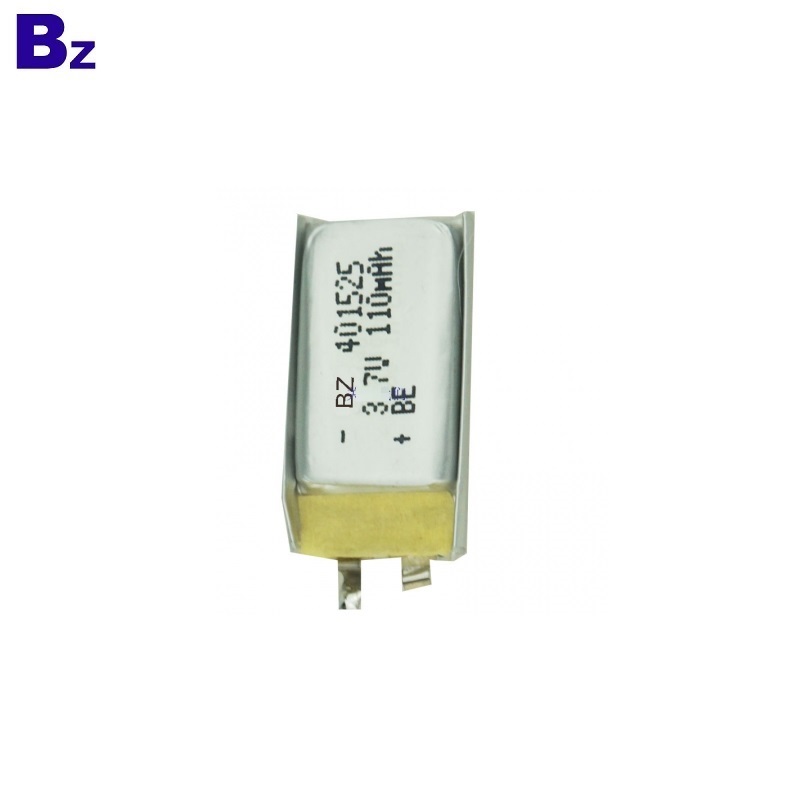

China Best Lithium Battery Manufacturer ODM Battery For Digital Devices BZ 401525 110mAh 3.7V Lithium-ion Polymer Battery
$0.95
In stock
SKU
BZ 401525
Price: US $0.86-0.95 / Piece
Min. Order: 5,000 Pieces
Please contact us for the order !
Brand Name: BZ
Model Number: 401525
Type: Li-polymer
Nominal Voltage: 3.7V
Size: 4*15*25mm
Nominal Capacity: 110mAh
Product name: 401525 Li-ion battery
Warranty: 1 Year
Weight: 2g
Cycle life: 500 Times
Capacity: 110mAh
Voltage: 3.7V
Application: Wearable Device
Certificate: CE/RoHS/UN38.3/MSDS
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1C
BZ 401525 110mAh 3.7V Cheap Lipo Battery
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 115mAh | Standard discharge（0.2C C5A) after Standard charge |
| Minimum | 110mAh | |||
| 2 | Nominal Voltage | 3.7V | Mean Operation Voltage | |
| 3 | Voltage at end of | 3.0V | Discharge Cut-off Voltage | |
| Discharge | ||||
| 4 | Charging Voltage | 4.2±0.03V | ||
| 5 | Internal Impedance | ≤250mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 7 | Standard discharge | Constant current 0.2 C5A | ||
| end voltage 3.0V | ||||
| 8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 9 | Fast discharge | Constant current 0.5C5A | ||
| end voltage 3.0V | ||||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
| Bare Cell | ||||
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| less than 3 months: -20~40℃ | at the shipment state | |||
| 14 | Pack Dimension |
High: max27mm Width: max15mm Thickness: max4mm |
Initial Dimension | |
