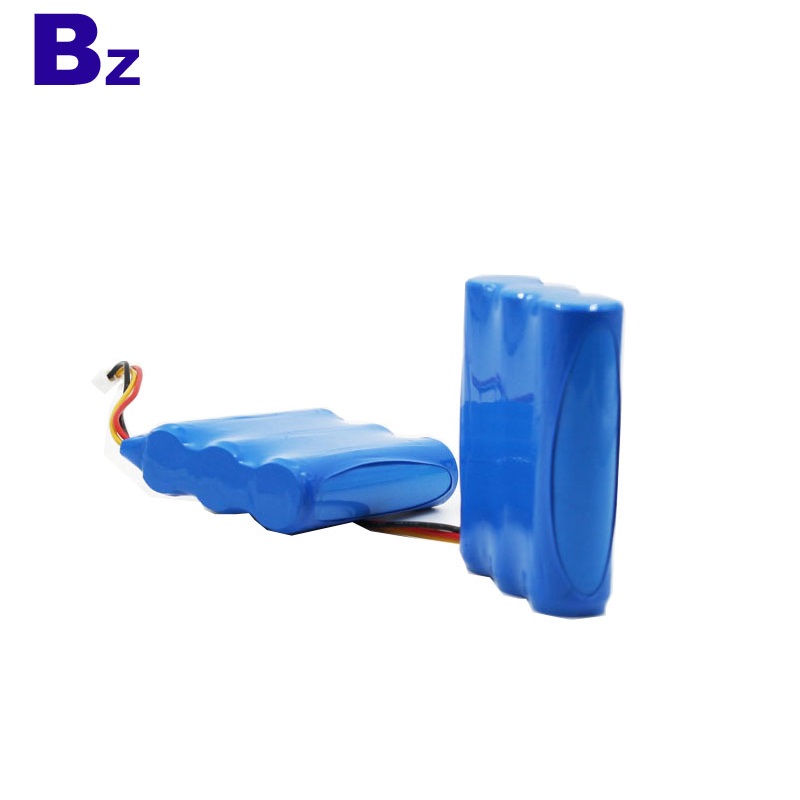

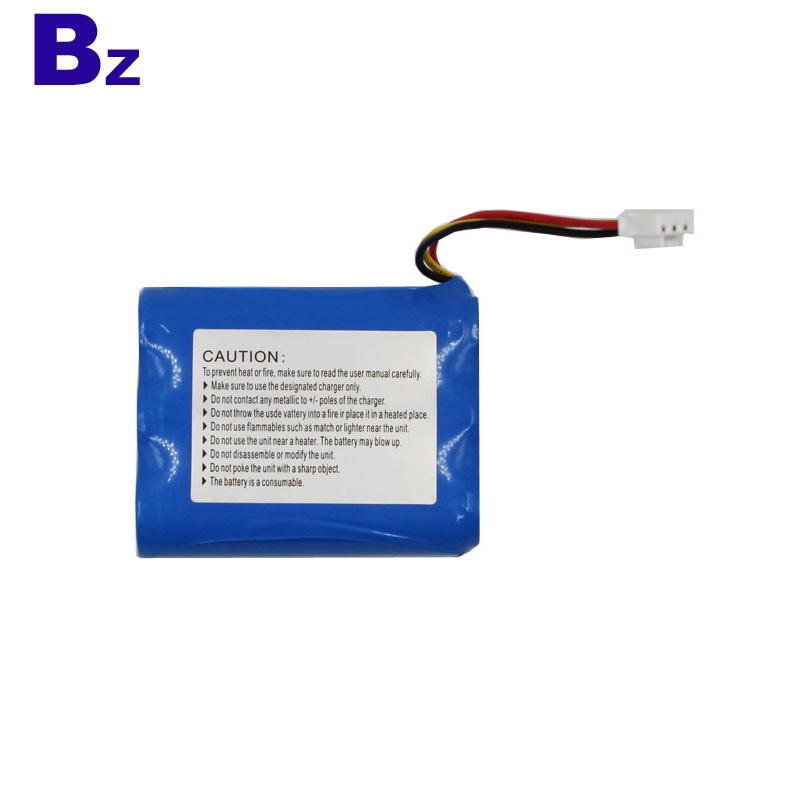

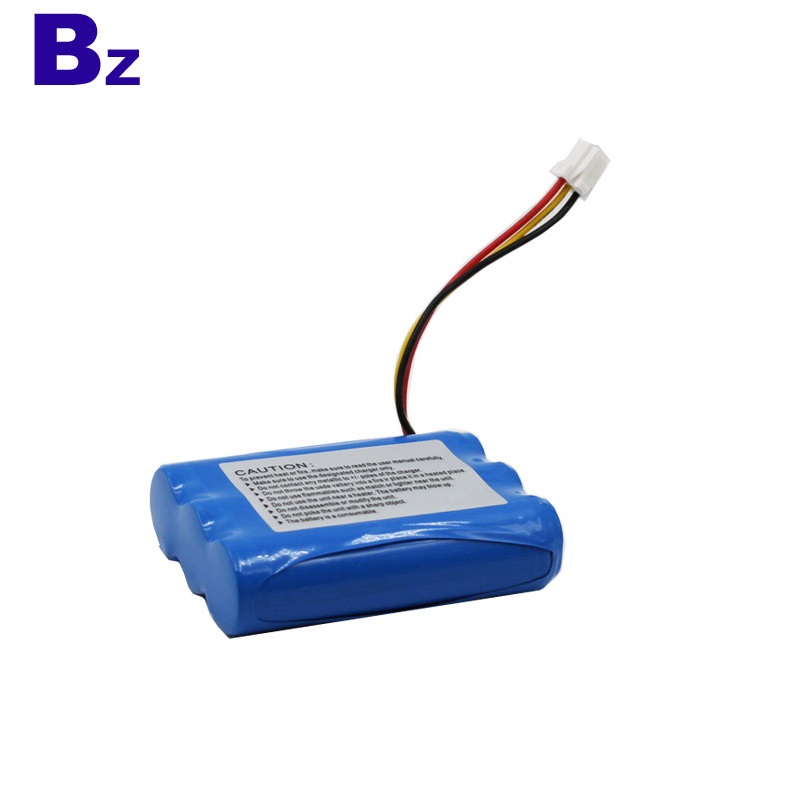

China Lithium Battery Factory OEM Li-ion Battery for Sweeper Robot BZ 18650-3S 2200mAh 11.1V 1.5C Cylindrical Lithium Ion Battery with KC Certificate
Price: US $6.5-6.8 / Piece
Min. Order: 1,000 Pieces
Please contact us for the order !
Place of Origin: Guangdong, China (Mainland)
Brand Name: BZ
Model Number: 18650 3S1P
Type: Li-ion
Nominal Voltage: 11.1V
Size: 19*55*71mm
Nominal Capacity: 2150mAh
Product name: BZ 18650-3S
Warranty: 1 Year
Weight: 144g
Cycle life: 500 Times
Capacity: 2200mAh
Application: Li-ion Battery for Sweeper Robot
Certificate: CE/RoHS/UN38.3/MSDS/KC/CB/IEC62133
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1.5C
18650-3S 2200mAh 11.1V 1.5C Lithium Ion Battery with KC Certificate
|
ITEM |
Specification |
|
Normal capacity |
2200 mAh |
|
Minimum capacity |
2150 mAh |
|
Nominal voltage |
11.1V |
|
Charge mode |
CC,CV |
|
Max Charging voltage |
12.6 V |
|
charge current |
≤1.1A |
|
Charging cut-off current |
60±10mA |
|
Discharging Current |
≤2A |
|
Maximum Continuous Discharging Current |
≤3A |
|
Discharge ending voltage |
9V |
|
Recommended charge and discharge battery body temperature |
Charge: 0~45℃ Discharge: -20~60℃ |
|
Humidity range |
0 ~ 85 % RH (non-condensing ) |
|
Battery dimension |
Max:71.0*57.0*20.0mm |
| Weight |
145±10g |
