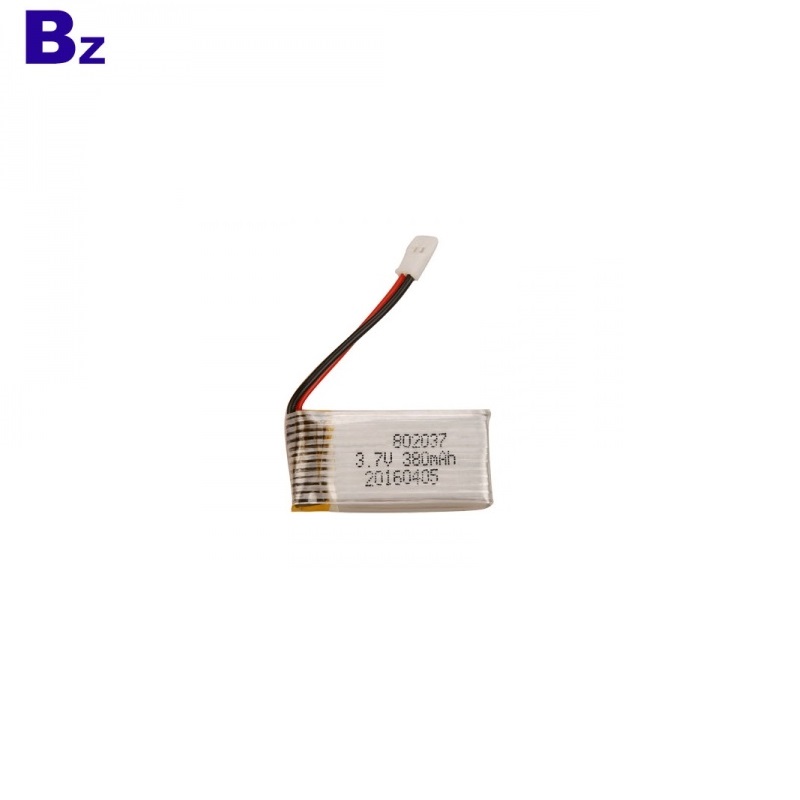

China Lithium Battery Manufacturer OEM High Rate Battery For RC Models BZ 802037 380mAh 15C 3.7V Li-polymer Battery
Price: US $4.2-4.8 / Piece
Min. Order: 5,000 Pieces
Please contact us for the order !
Place of Origin: Guangdong, China
Brand Name: BZ
Model Number: 802037
Type: Li-polymer
Nominal Voltage: 3.7V
Size: 8*20*37mm
Nominal Capacity: 380mAh
Product name: BZ 802037 High Rate Battery
Warranty: 1 Year
Weight: 10g
Cycle life: 500 Times
Capacity: 380mah
Voltage: 3.7V
Application: RC Models
Certificate: CE/RoHS/UN38.3/MSDS
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1C
High Rate Battery - BZ 802037 - 380mah - 15c - 3.7v - Lithium Ion Battery - Rechargeable
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Minimum |
380mAh |
Standard discharge（0.2C C5A) after Standard charge |
|
2 |
Nominal Voltage |
3.7V |
|
|
|
4 |
Charging Voltage |
4.2±0.03V |
|
|
|
5 |
Internal Impedance |
≤180mΩ |
Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
|
|
6 |
Standard charge |
Constant Current 0.2C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 6h |
|
|
7 |
Standard discharge |
Constant current 0.2 C5A end voltage 2.75V |
|
|
|
8 |
Fast charge |
Constant Current 1.0C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 2.5h |
|
|
9 |
Fast discharge |
Constant current 15C5A end voltage 2.75V |
|
|
10 |
Maximum Continuous Charge Current |
1.0 C5A |
|
|
11 |
Maximum Continuous Discharge Current |
15C5A |
