Lipo Cell Manufacturer Wholesale Alarm Clock Battery UFX 651660 3.7V 500mAh Li-Ion Polymer Battery

$1.35
In stock
SKU
651660 3.7V 500mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

    Brand Name: BZ
    Model Number: 651660
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 6.5*16*62mm
    Nominal Capacity: 500mAh
    Product name: 651660 Li-polymer Battery
    Warranty: 1 Year
    Weight: 10g
    Cycle life: 500 Times
    Application: Alarm Clock Battery
    Certificate: RoHS/MSDS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C


Benzo Energy • UFine Technology' Lithium battery test laboratory

Benzo Lithium battery test laboratory

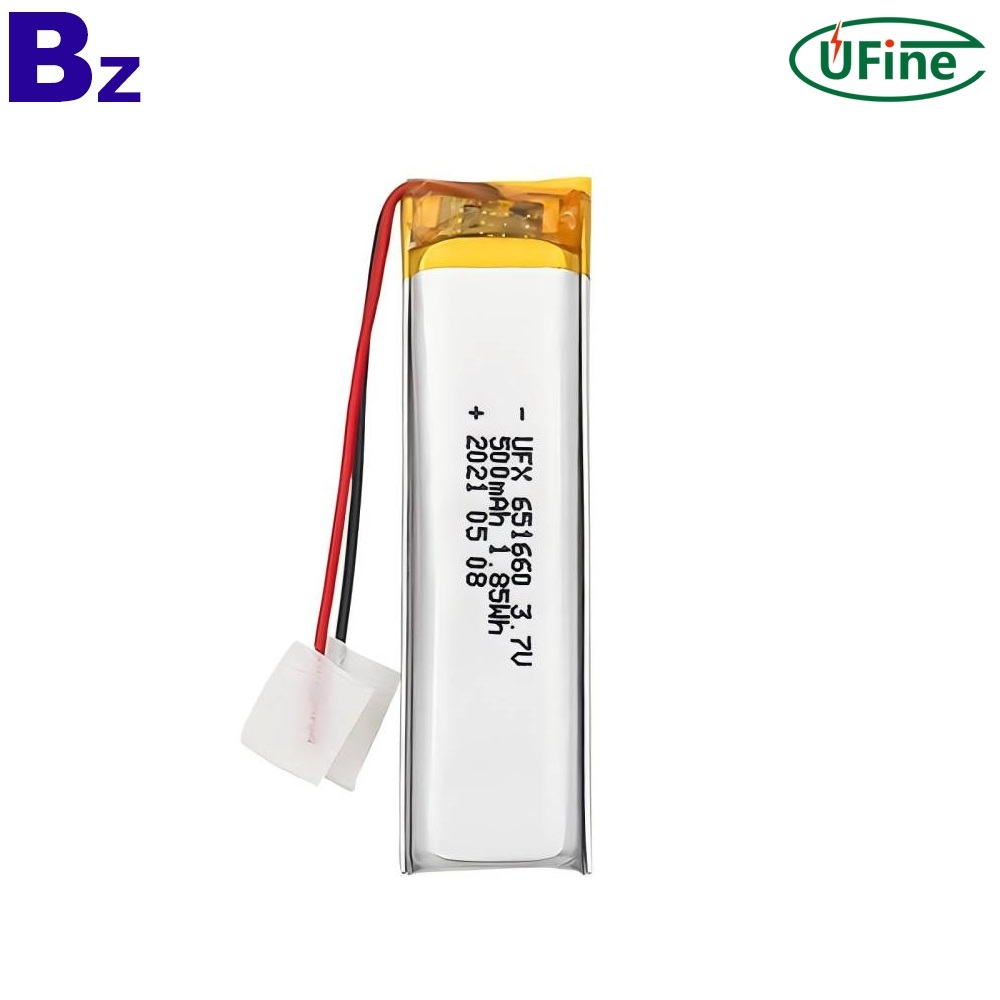

도매 3.7V 500mAh 배터리

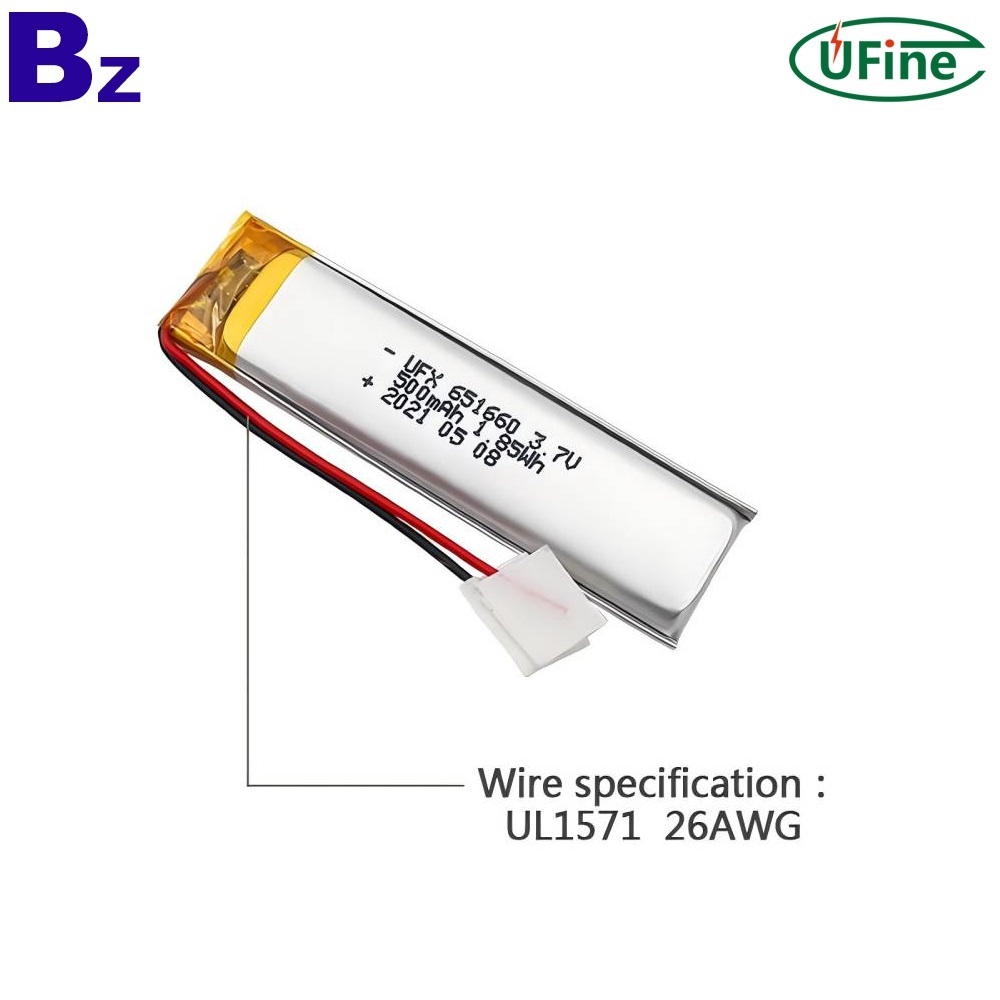

651660 3.7V 500mAh 리튬이온 폴리머 배터리

알람 시계용 3.7V 500mAh 배터리


Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

510mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

500mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤175mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max62mm

Width: max16mm
Thickness: max6.5mm

Initial  Dimension
