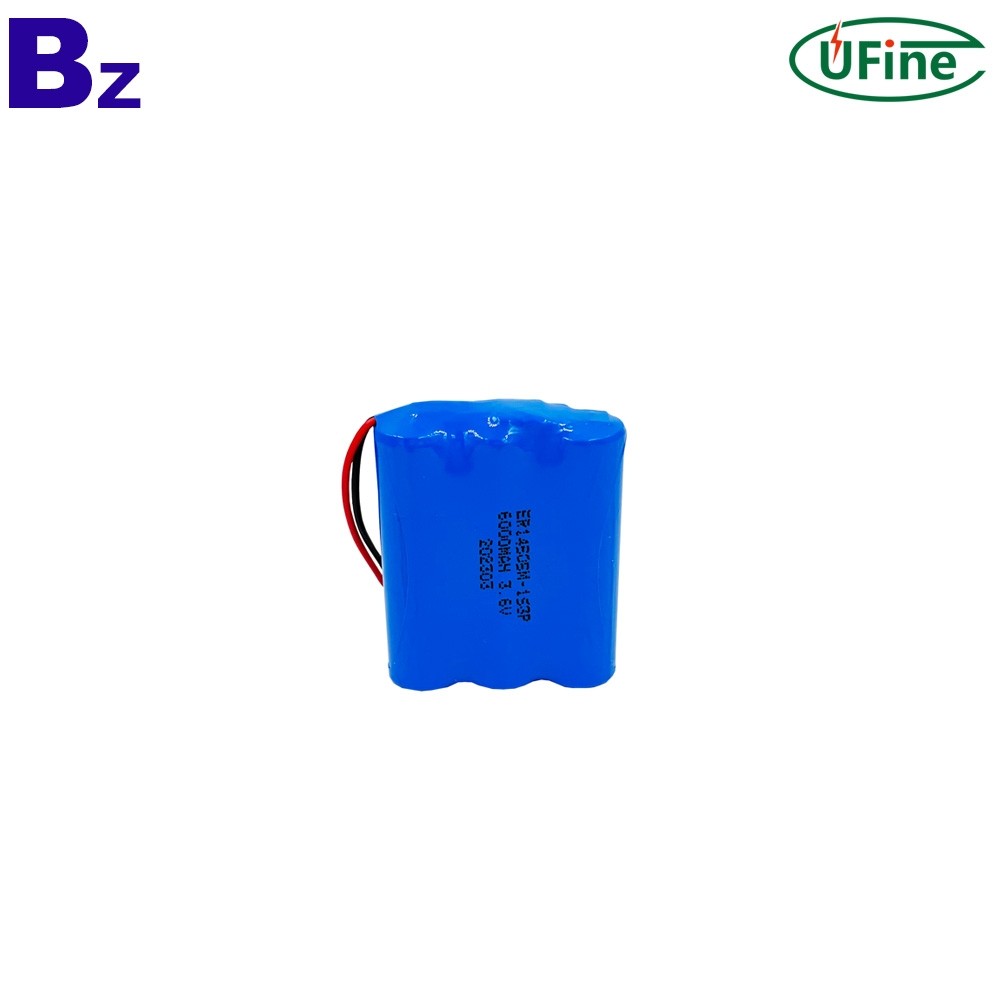

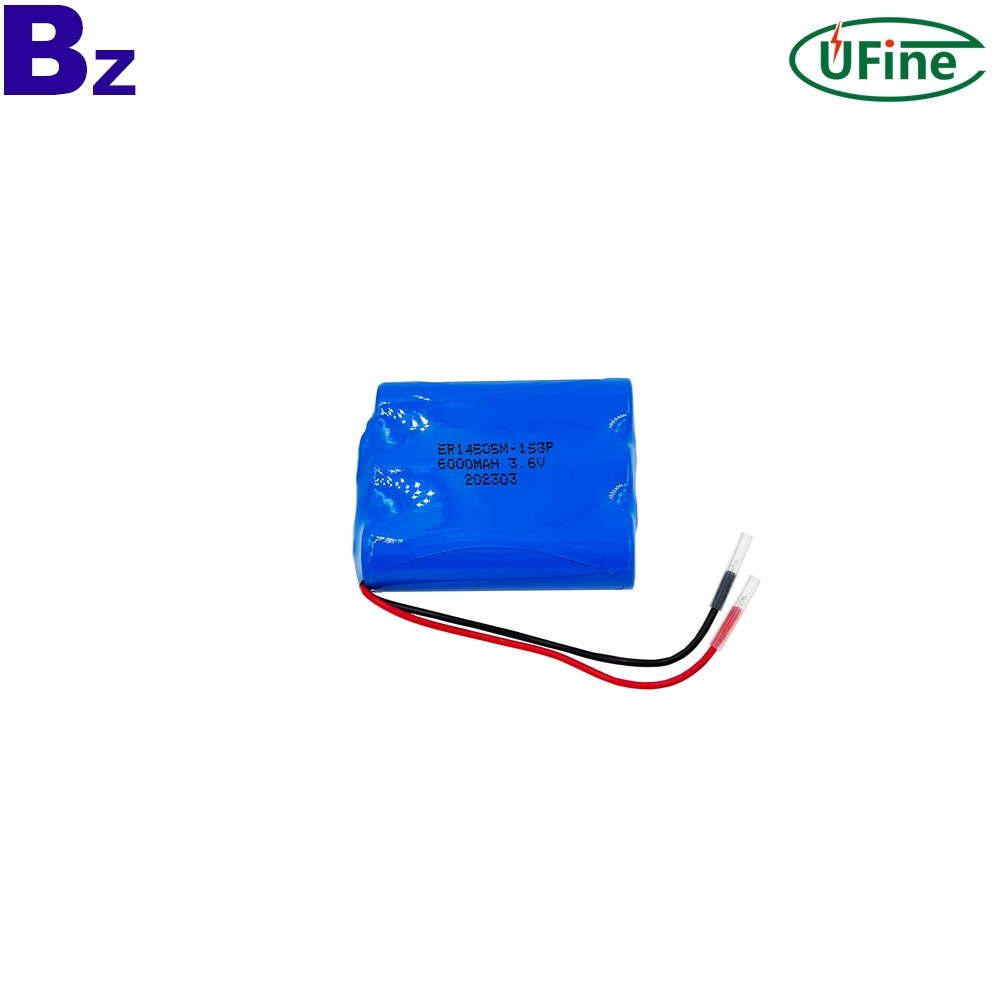

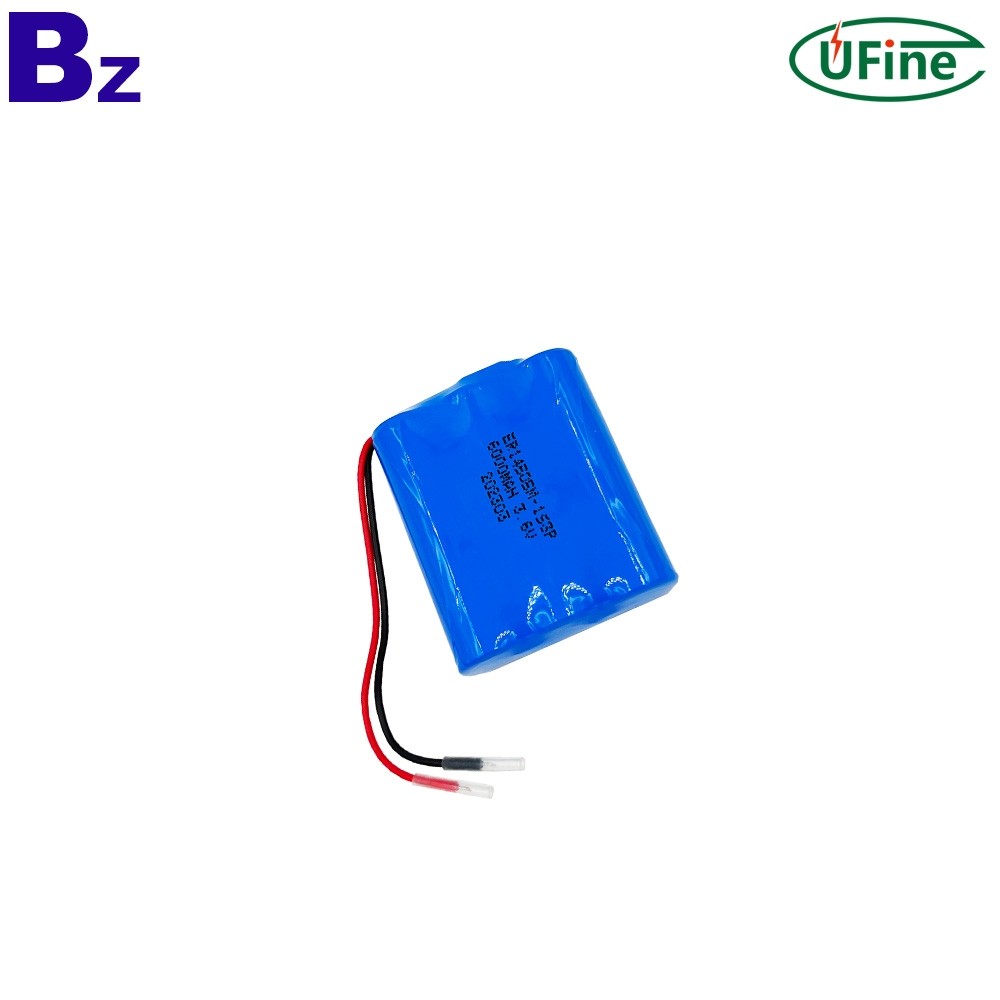

Wholesale Tracking Device Cylindrical Battery ER14505-1S3P 3.6V 6000mAh Lithium-thionyl Chloride Battery
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !
원산지: 중국 광동
브랜드 이름: BZ
모델 번호: ER14505-1S3P
유형: 리튬 염화 티오닐 배터리
공칭 전압: 3.6V
크기: 15*43*53mm
공칭 용량: 6000mAh
제품 이름: BZ ER14505 리튬 염화 티오닐 배터리
보증: 1년
무게: 70g
신청: 똑똑한 수량계 건전지
증명서: UN38.3/CE/MSDS/ROHS
지불: Paypal.TT.Escrow.Western Union
Benzo Energy • UFine Technology' Lithium battery test laboratory
Product Parameters
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
6000mAh |
|
|
Minimum |
6000mAh |
|||
|
2 |
Nominal Voltage |
3.6V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of |
2.0V |
Discharge Cut-off Voltage |
|
|
Discharge |
||||
|
4 |
Internal Impedance |
≤60mΩ |
|
|
|
|
||||
|
5 |
Maximum Continuous Discharge Current |
50mA |
||
|
6 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
|
Bare Cell |
||||
|
Discharge: -20~60℃ |
||||
|
7 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. |
|
|
less than 3 months: -20~40℃ |
at the shipment state |
|||
|
8 |
Pack Dimension |
High: max 53 mm Width: max 43 mm |
Initial Dimension |
|
